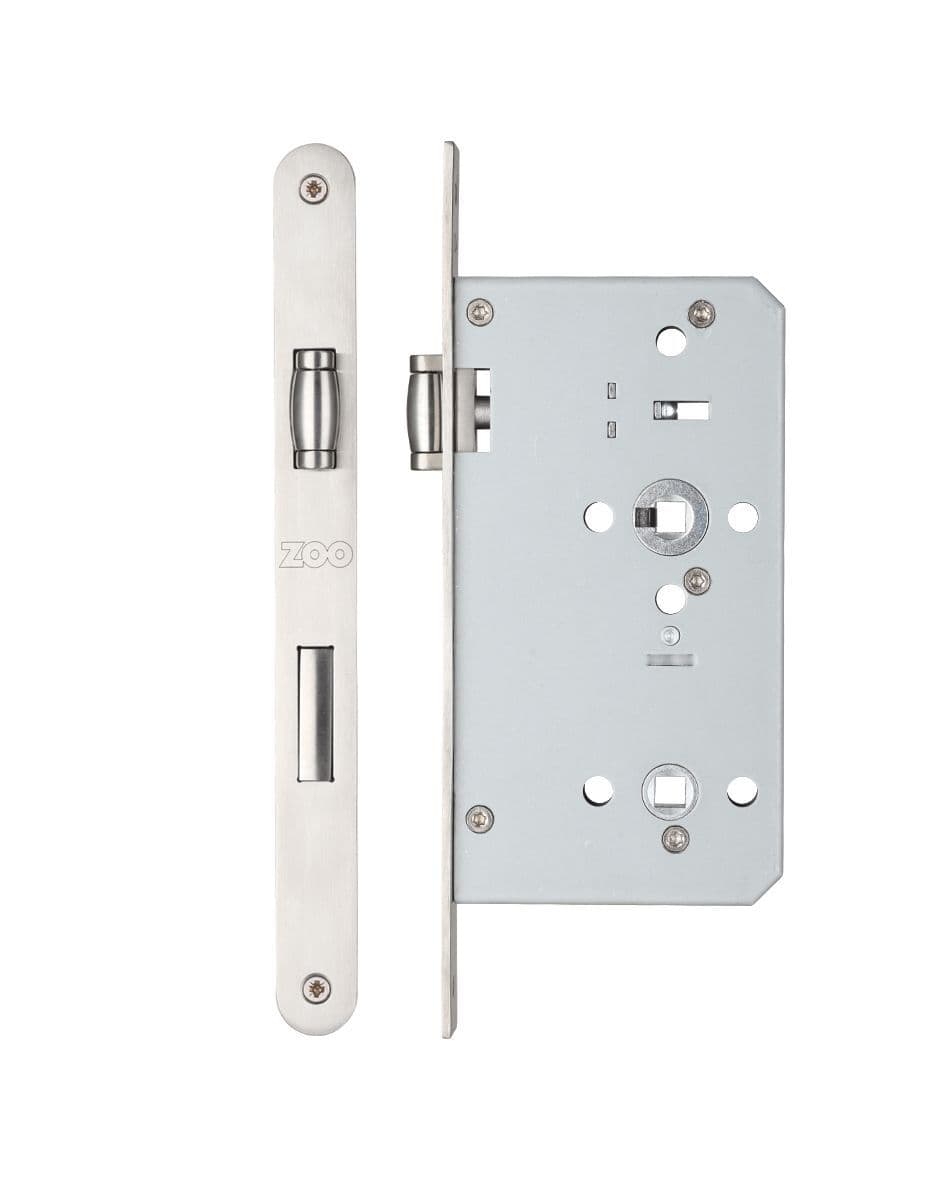

ZDL7260LLSS DIN Lift to Lock Bathroom Sashlock
Original manufacturer product codes.
ZDL7260LLSS - 60mm Backset - Square Faceplate - Stainless Steel
ZDL7260LLRSS - 60mm Backset - Radius Faceplate - Stainless Steel
The Zoo Hardware lift to lock DIN lock inside lever handle presses down to release the latch bolt,whilst also lifting up to throw the dead bolt. This is illustrated by the included sign lift handle to lock. Please note this product is the case only. You will also need the handle kit ZCS030LL.
KEY FEATURES
Please note this product is the case only. You will also need the handle kit ZCS030LL.
BS EN 12209 2003 : Grade 3

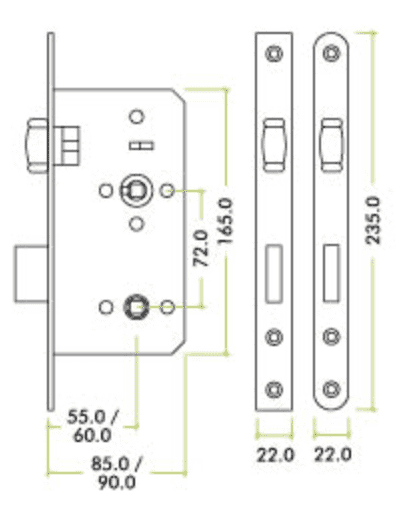

85mm case size
55mm backset
Square profile - 22mm Grade 304 stainless steel forend
Grade 304 stainless steel latchbolt
72mm distance between handle and the cylinder, allowing more room to operate the handle
Heavy duty locks ideally suited for high traffic areas such as public buildings, hospitals and schools
Anti Thrust Pin
Grip tight follower
72mm c/c
ZDL7260LLSS - 60mm Backset - Square Faceplate - Stainless Steel
ZDL7260LLRSS - 60mm Backset - Radius Faceplate - Stainless Steel
The Zoo Hardware lift to lock DIN lock inside lever handle presses down to release the latch bolt,whilst also lifting up to throw the dead bolt. This is illustrated by the included sign lift handle to lock. Please note this product is the case only. You will also need the handle kit ZCS030LL.
KEY FEATURES
Please note this product is the case only. You will also need the handle kit ZCS030LL.
BS EN 12209 2003 : Grade 3
85mm case size
55mm backset
Square profile - 22mm Grade 304 stainless steel forend
Grade 304 stainless steel latchbolt
72mm distance between handle and the cylinder, allowing more room to operate the handle
Heavy duty locks ideally suited for high traffic areas such as public buildings, hospitals and schools
Anti Thrust Pin
Grip tight follower
72mm c/c
-
Function:Lift To Lock
-
Brand:Zoo Hardware
-
Backset:60mm
-
Product Code:ZDL7260LLSS
