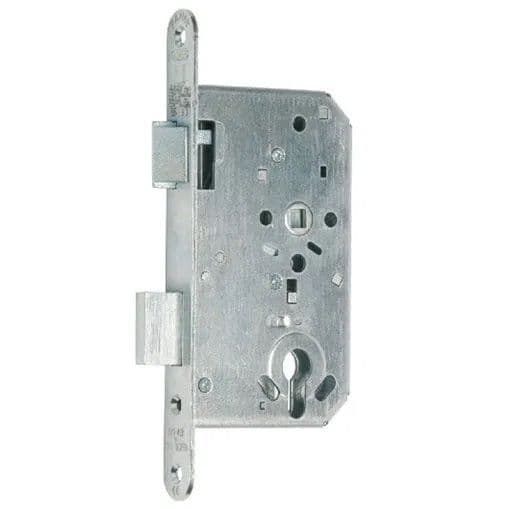

Nemef 1769 Euro DIN Panic Sashlock 65mm Backset
Pull down of the internal lever unlocks both the locking bolt and latch. , the 1769/77 is split spindle function and handed. Designed to take a euro-profile cylinder. This lock has been engineered in accordance with DIN 18250.
Please ensure you order the correct hand. These items are NOT reversible.
Features:
- Backset: 65mm
- Distance: 72mm
- 9mm Spindle
- Intended for use in fire-resistant steel doors
- To take a euro-profile cylinder
- Handed
- Key action on latch bolt
- Double throw dead bolt
- Standard version available in packs of 1pc or 25pcs
- CE marked
- EN12209, EN179, and EN1125 certified
- Designed according to DIN 18250 up to T120 (pt. 1)
- Stainless steel forend
Also Available:
- Panic versions with bolt through hub (Arts. 1769/35 & 1769/36)
- Panic version with split hub (Arts. 1769/46 & 1749/56)
- Panic version with split hub, reversed (Art. 1769/77)
- 22mm profile cylinder hole
- Strike plate, reversible, zinc-plated (Art. 1769/66)
- Strike plate, handed, stainless steel (Art. 1769/17)
- Reduction sleeve 9/8mm (Art. 1769/21)
This is a special order non-cancellation item.
LKS Accept NO returns for unwanted or incorrectly ordered goods.
-
Backset:65mm
-
Brand:Nemef
-
Product Code:59100274
