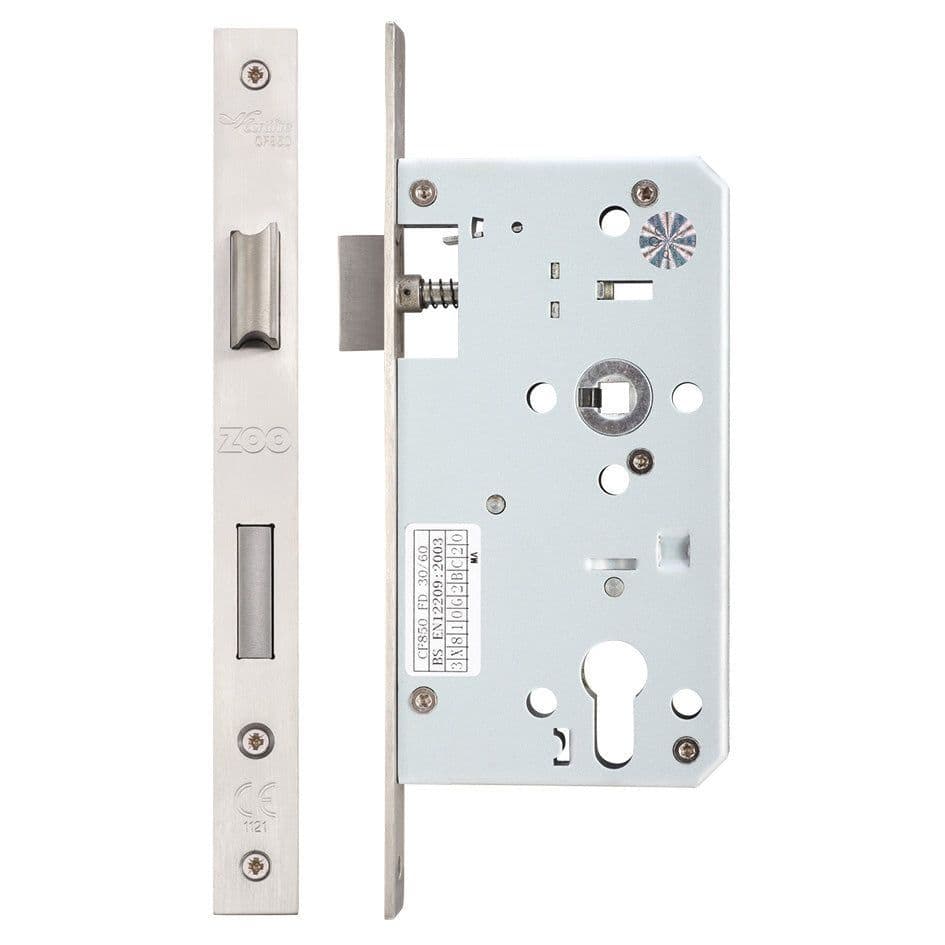

DIN Euro Escape Sashlock - ZDL7260ESC-S-SSS - Satin Stainless Steel

DIN Euro Escape Sashlock - ZDL7260ESC-S-SSS - Satin Stainless Steel

The ZOO Hardware ZDL7260ESC-S-SSS DIN Euro Escape Sashlock provides secure locking while allowing rapid exit from the escape side of the door. When operated using compatible escape lever furniture, a single downward movement retracts both the latchbolt and deadbolt, helping occupants exit quickly without first unlocking the door with a key.

Designed for commercial buildings, communal entrances and other escape-route applications, the lock features a durable Grade 304 stainless steel forend, latchbolt and deadbolt. Its anti-rattle strike helps minimise movement and noise when the door is closed, while the grip-tight split follower provides reliable lever operation.

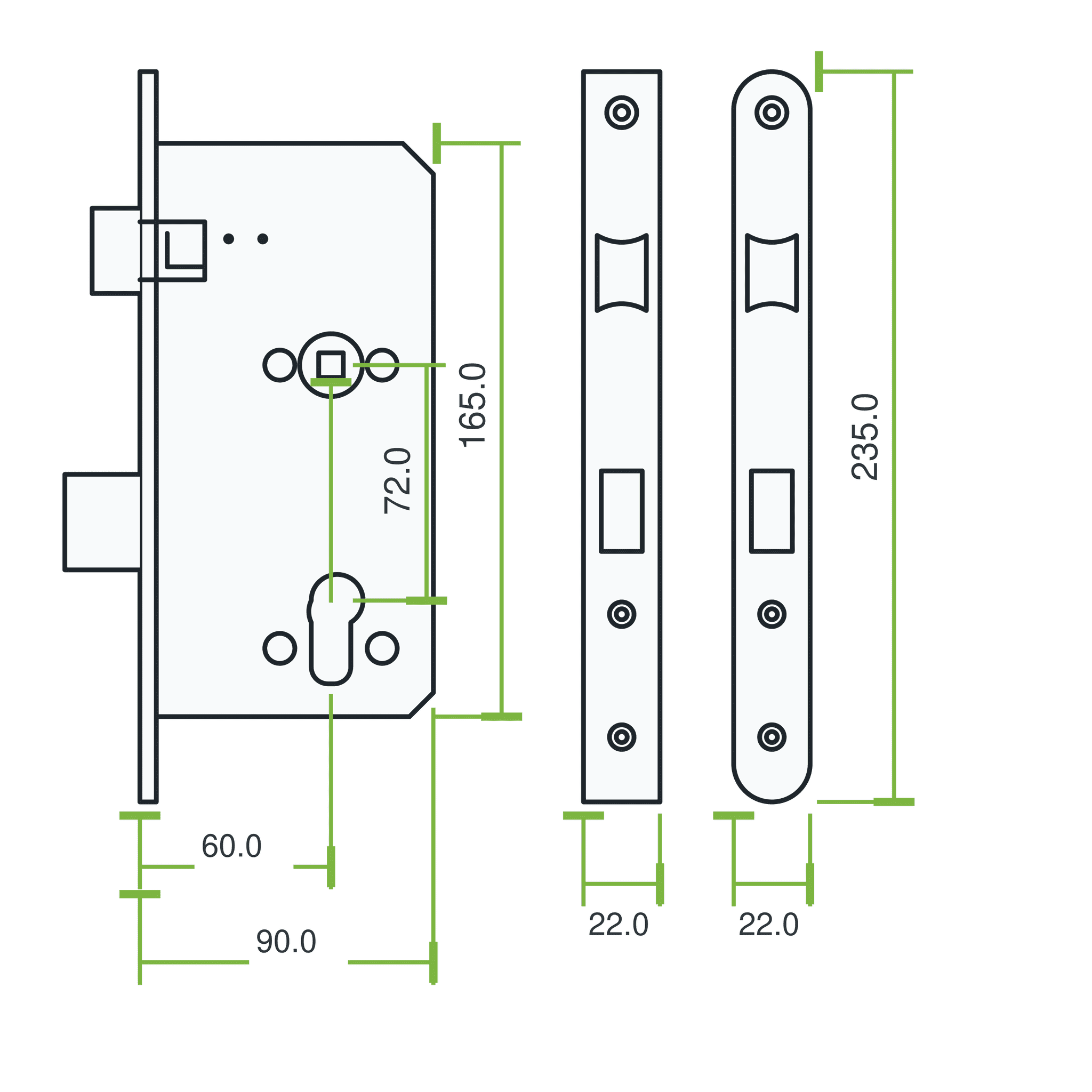

The lock has standard DIN dimensions, including 72mm centres and a 60mm backset, and is designed for use with a Euro-profile cylinder and suitable lever furniture.

Key Features:

• Escape function retracts the latchbolt and deadbolt in a single lever operation

• Tested to BS EN 179:2008

• Suitable for escape-route and commercial door applications

• Euro-profile cylinder operation

• 72mm handle-to-cylinder centres

• 60mm backset

• 90mm lockcase

• Square-profile forend

• Grade 304 stainless steel forend, latchbolt and deadbolt

• Satin stainless steel finish

• Anti-rattle strike plate

• Grip-tight split follower

• Supplied as a lockcase only

Product Code: ZDL7260ESC-S-SSS
