Arrone AR3500-D-E/E RAL 9017 Heavy Duty Ebony Black Door Closer

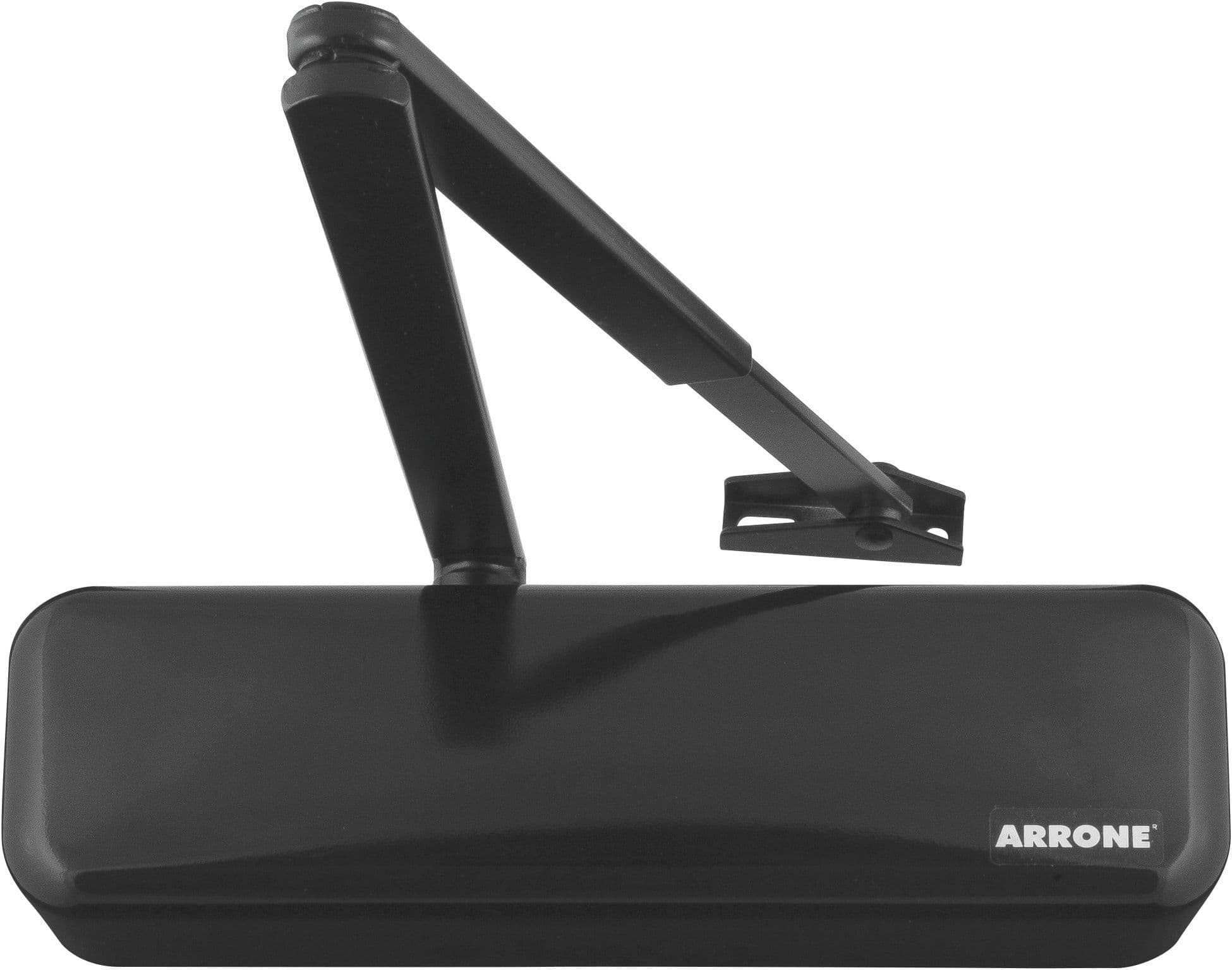

Arrone AR3500-D-E/E Heavy Duty Ebony Black Door Closer

Heavy duty door closer with adjustable size power 2-4. Finished in matching RAL 9017 on both the case and arm.

Details

• Power size: 2 to 4 adjustable by spring tension
• Function: Closing, latching, backcheck
• Cover: Designer cover
• RAL 9017 Ebony Black
• Maximum door width: 1,100 mm
• Maximum door weight: 80 kg
• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
• Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  - Door mount pull (Fig 1), door mount push (Fig 6), transom mount pull (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 4
• Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
• CE Marked: AD0009, UKCA Marked: AD7695
• Certifire approved: CF294, CE DOP: HUK0019, UKCA Marked: HUK0019-UK
• The AR3500 can satisfy the opening force recommendations of BS 8300 and ADM when fitted in Fig 1 to a door with minimum width of 938 mm according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS 8300 and ADM.
